• This is See-through display type Glass Device which is made by all Maker-Style like Google Glass. But this has some restrictions.

Restrictions †

Functions †

• See-Through Display
• Gesture Controlling System
  • Take pictures
  • Show pictures

Making Rules †

• Hardware
  • Handmade with desktop fabrication
  • Buy from D.I.Y shop or Amazon
• Software
  • Use Open Source Software

Desktop Fabrication †

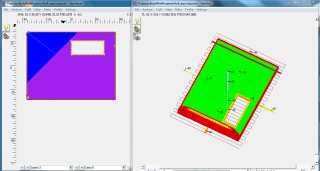

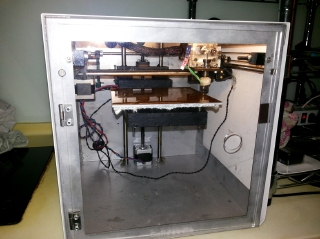

• 3D Printer



• CNC Milling Machine

• Miter Saw

• Jig Saw

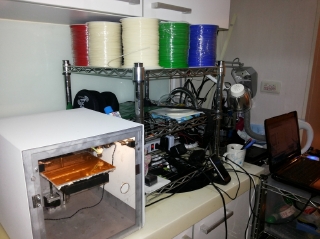

• Fab on kitchen


The items to prepare †

Hardware †

• Small Computer
  • Pandaboard
• Projector for See-Through Display
  • PP003 Portable Pocket Projector
• Z-Camera
  • Xtion(Like Kinect)
• Short range focus lens for Kinect
  • ZOOM

Software †

• Linaro/Android
  • Linaro13.03
• OpenNI
  • OpenNI

Materials †

Presentation †

• Try to Make Google Glass by Maker Style

Source code & Binary †

• Coming Soon

Contact us †

• info (at) siprop (dot) org

Speech & Show demonstration †

Demonstration †

• Maker Faire 2013 Bay area
• COSCUP2013
• Mini Maker Faire HongKong 2013

Media †

• Nikkei Linux Oct/2013

Referred †

Contact us †

• info (at) siprop (dot) org

How To Make †

See-Through Display †

• Mini-Projecter for SmartPhone?

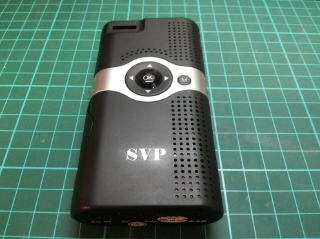

  • PP003 Portable Pocket Projector from Amazon
• Half-Mirror type Sun Shielding Film
  • as Screen for See-Throuhgh from D.I.Y Shop.

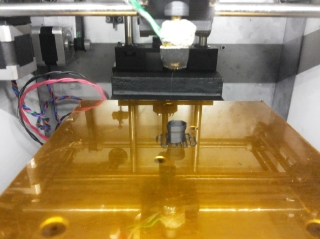

• Parts from 3D Printer

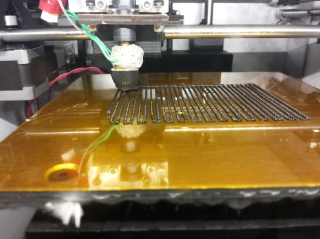

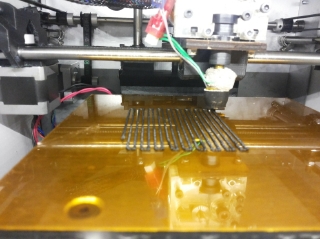

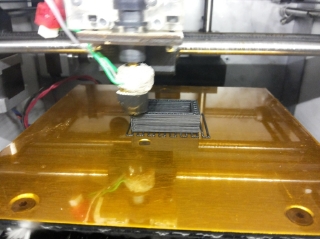

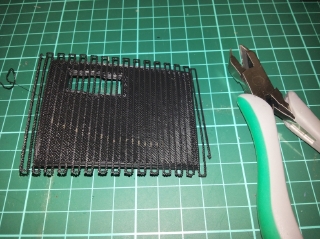

  • Handmade by 3D Printer

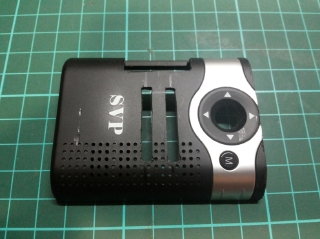

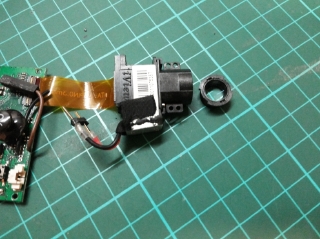

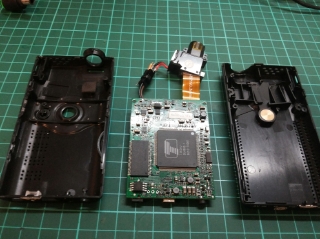

Disassenbly Projector †

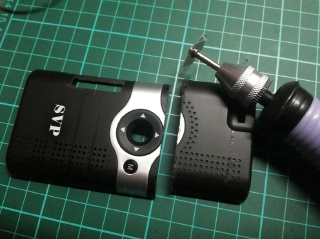

• Cut Projector Cover to Match Size

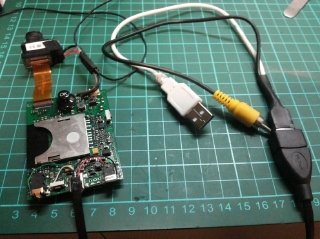

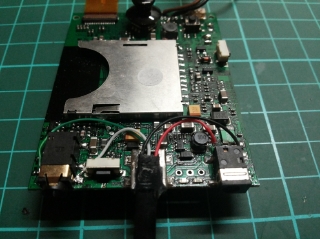

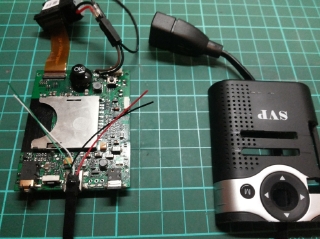

Connect Powor Cable & RCA Cable as USB †

• Change to thin cable

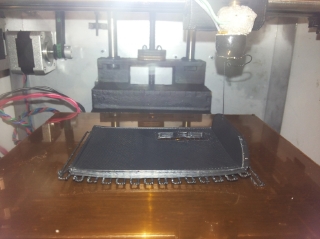

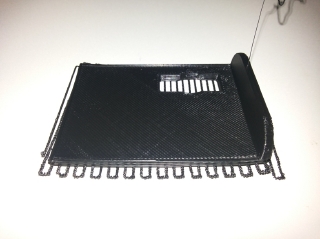

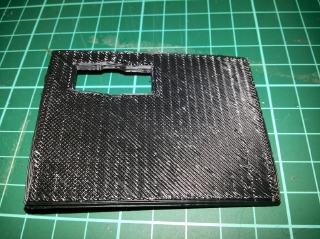

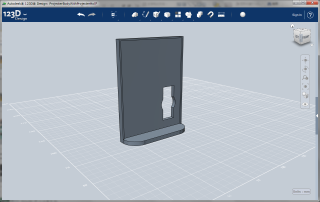

Make a new back cover by 3D Printer †

• The original back cover has a battery.

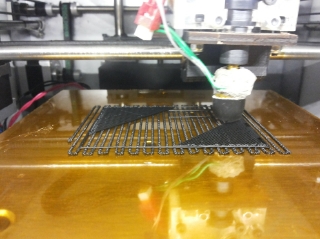

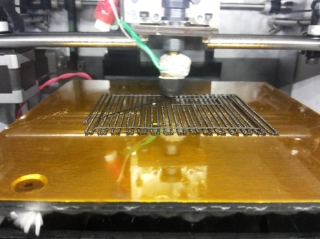

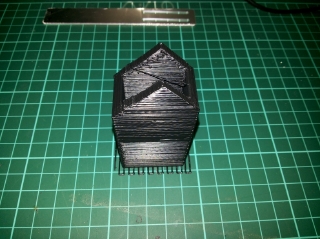

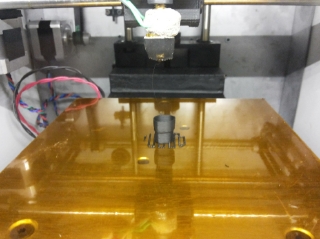

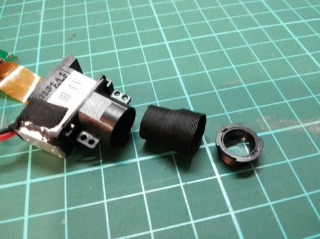

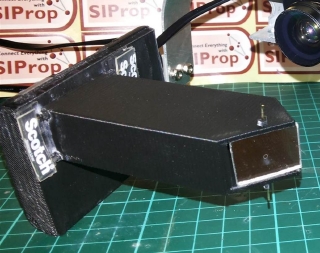

Make a focus tube by 3D Printer †

• This projector's screen size is 4 inch. However 4 inch is too big for ocular screen.
  • Change screen size 4 to 1 inch by long tube.

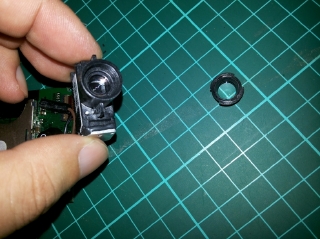

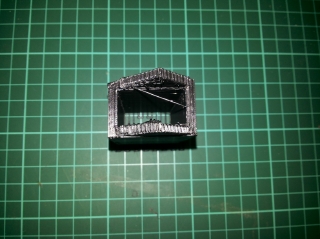

Make a screen cover & Setup the Ocular lens †

• This projector light is very weak & require the ocular lens for very short distance to eye.

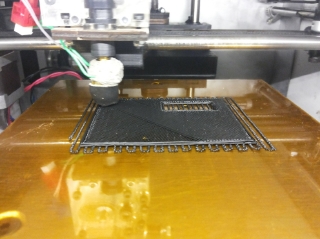

  • Make the screen cover by 3D printer





• Setup the ocular lens

  #ref(): File not found: "projectorlens01.jpg" at page "product/MakerStyleGoogleGlass"

Make a screen by Half-Mirror type Sun Shielding Film and Use Jig Saw †

• A first screen is for for the ocular lens. A second screen is for your eye.

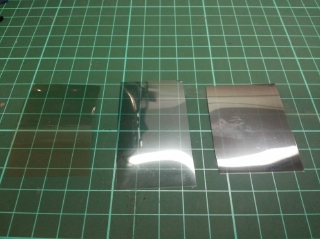

  • 3 kinds of transparency coefficient. 50% for the first screen, 5% for the second screen
  • Setup the first screen for the ocular lens


• Setup the second screen for your eye

  #ref(): File not found: "projector2ndscreen01.jpg" at page "product/MakerStyleGoogleGlass"

Finish †

Gesture System †

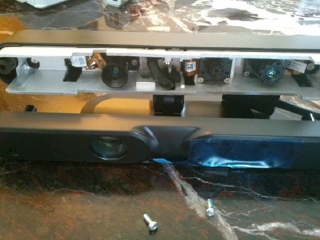

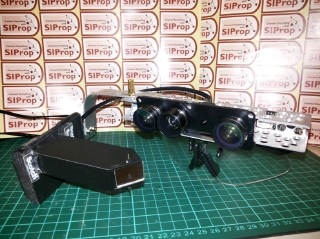

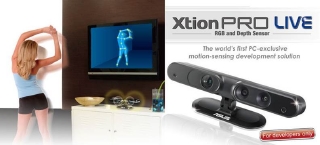

• Xtion Pro LIVE
  • Depth Camera like Kinect device
• ZOOM

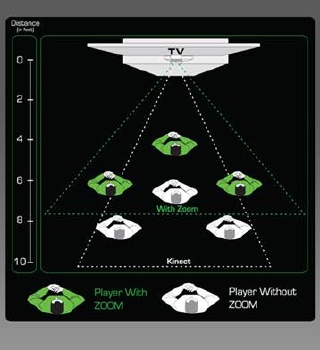

  • Short range focus lens for Kinect

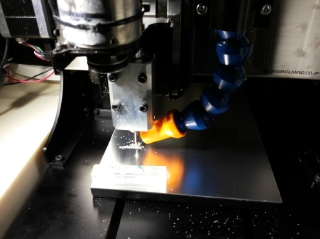

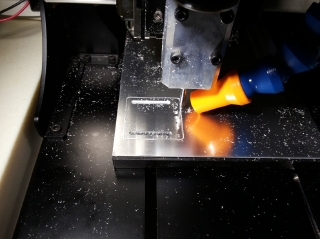

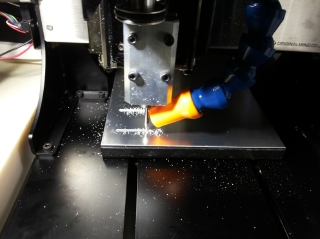

• Parts from CNC Milling Machine
  • Require high strength parts

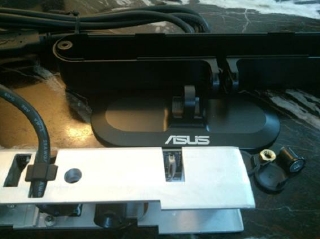

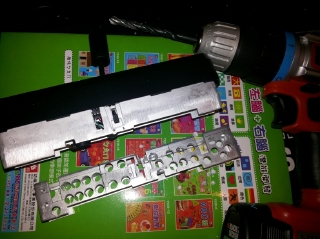

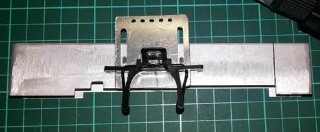

Make a mount system on Glasses †

• Made by aluminium.
  • Xtion is so heavy. Therefore high strength parts.

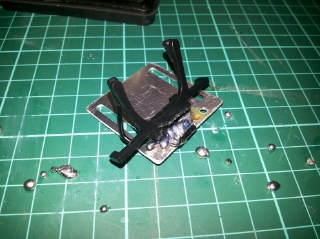

Connect Glasses Clip and Mount Board on Base-Glasses †

• First try is only screw. However screw's mount is very weak.

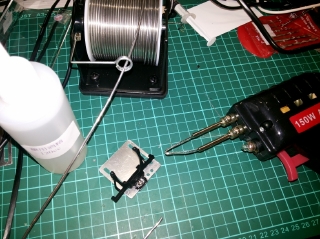

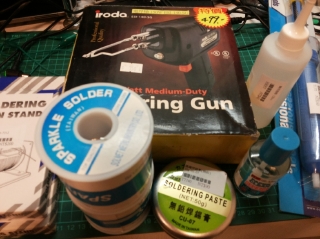

  • Use soldering Iron as Brazing




Light Weight-nize †

• Xtion is so heavy.

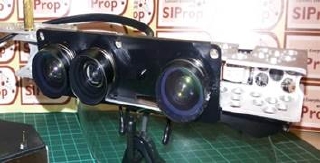

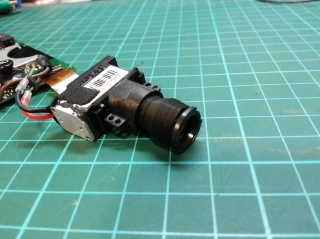

Mount Short range focus lens for Kinect †

• Put ZOOM on Xtion by glue.

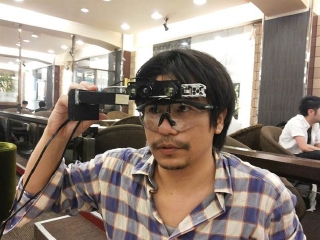

Finish †

Setup Linaro/Android & Custom Kernel †

1. Setup Linaro/Android13.03 from binary
   1. Install Linaro Tools


       $ sudo add-apt-repository ppa:linaro-maintainers/tools
       $ sudo apt-get update
       $ sudo apt-get install linaro-image-tools

   2. Get Binaries
      1. boot.tar.bz2
      2. system.tar.bz2
      3. userdata.tar.bz2
   3. Install Linaro/Android to SD Card.
      1. Change /dev/sdX to your SD Card.


         sudo ./linaro-image-tools/linaro-android-media-create --mmc /dev/sdX --dev panda --boot boot.tar.bz2 --system system.tar.bz2 --userdata userdata.tar.bz2

   4. Install graphics libraries


       $ wget http://people.linaro.org/~vishalbhoj/install-binaries-4.0.4.sh
       $ chmod a+x install-binaries-4.0.4.sh
       $ ./install-binaries-4.0.4.sh

2. Setup USB FS
   1. Edit "/init.rc"

      Add a following line under "on boot"

      mount usbfs none /proc/bus/usb -o devmode=0666

Setup OpenNI †

• Please look at OpenNI section of TreasureHuntingRobot

Setup OpenCV †

• Please look at OpenNI section of TreasureHuntingRobot

Make original home application on Android †

• Please look at Nikkei Linux Oct/2013

Make a gesture controlling system †

• Please look at Nikkei Linux Oct/2013
